    Linear Wrapper Shrink Sleeve Label Applicator Bottle Packing Plant 220V 380V 400V

    Ask Lasest Price
    Brand Name : ZHANYAN
    Model Number : HLML4
    Certification : CE Certificate
    Supply Ability : 5 Set/Sets per Month
    Price : Negotiable
    • Product Details
    • Company Profile

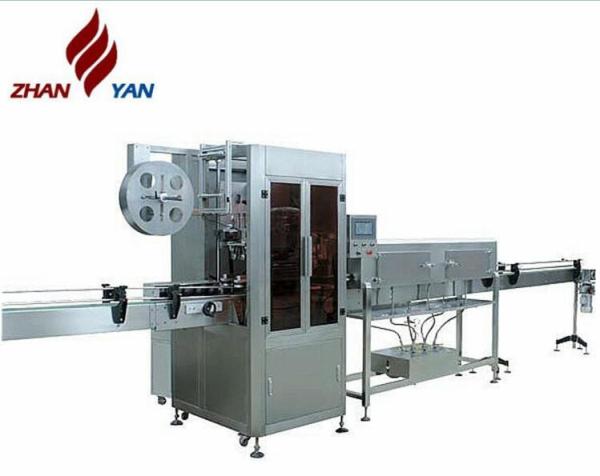

    Linear Wrapper Shrink Sleeve Label Applicator Bottle Packing Plant 220V 380V 400V


    linear wrapper shrink sleeve labeling applicator bottle packing plant


    Product Description

    Linear Wrapper Shrink Sleeve Label Applicator Bottle Packing Plant 220V 380V 400V


    1. Product Name:

    We have hot melt OPP Labeling Machine and Sleeve labeling machine


    2. Product Feature:

    Our labeling machine are fully automatic, it is widely used for different material of bottles, cans,jars and so on. The label label cost is comparatively lower, the machine can meet requirement of those users who have variety of containers. It is most economical models on cost to make mass production.

    The equipment has massive modularization design concept to make it easy and simple to change bottles. whether from the replacement of star wheel, guide plate or manual speed adjustment to automatic speed control, changing the label is only needed to change the program, the machine is embodies the concept that it is used for users and considered for users in everywhere.


    3. Technology Parameters:

    MachineMachine ModelHot melt labeling mahcineSleeve labeling machine
    CapacityMax18000BPH100-600BPM
    Size L*W*H3730*1314*2050mm2100*850*2000MM
    Weight2200KG around600-1000KG
    Power Supply220/380V, 50Hz,60Hz,220/380V, 50Hz,60Hz,
    Total Power13.5KW1.5-5KW
    Label MaterialsOPP,BOPP, PVC, PE, PAPER, PPPVC,PET,OPS etc.
    Label and BottleLabel Thickness0.03-0.13mm0.03-0.13mm
    Label SizeMax L330mm, Max W 170mm40-200mm
    Bottle DiameterØ40-Ø100mm3"-10"
    Bottle MaterialGlass,Metal,Plastic and othersGlass,Metal,Plastic and others
    Bottle ShapeRound bottlesround, square and other .
    OtherOperation MannerFull AutomaticFull Automatic
    Gas Supply0.6MPa/
    NoiseMax 80db/

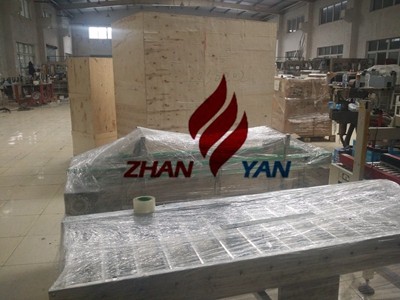

    Packaging & Shipping

    Linear Wrapper Shrink Sleeve Label Applicator Bottle Packing Plant 220V 380V 400V

    PalletAvailablepicture
    Inner PackagePlastic MaterialLinear Wrapper Shrink Sleeve Label Applicator Bottle Packing Plant 220V 380V 400V
    Outer PackageWooden BoxLinear Wrapper Shrink Sleeve Label Applicator Bottle Packing Plant 220V 380V 400V

    Linear Wrapper Shrink Sleeve Label Applicator Bottle Packing Plant 220V 380V 400V

    appliance cabinet

    Electric appliance cabinet:

    Electric appliance cabinet

    PLC

    H2c-60MT

    1

    INOVANCE

    Touch screen

    IT6070T

    1

    INOVANCE

    Power switch

    MW-220-50-24

    1

    MIMWEI

    Low-voltage electric appliance

    D181025A

    2

    OMRON

    Circuit breaker

    D247-63

    1

    DELIXI

    Fuse

    10AHG30-32

    4

    EARLISON

    Relay module

    10A

    4

    SIEMENS

    Relay socket

    DTF-08A

    9

    PANJE

    Capacitance

    5UF

    7UF

    1.8UF

    1

    1

    2

    DELIXI

    Contactor

    CJ*21210

    2

    DELIXI

    Emergency stop button

    PR15

    1

    SCHNEIDER

    Indication light

    NZH145

    1

    NANZHOU

    Linear Wrapper Shrink Sleeve Label Applicator Bottle Packing Plant 220V 380V 400V

    Steam generator:

    Steam Generator:


    Items

    ZYP-24KW

    Steam generating (kg/h)

    36

    Rating steam pressure(Mpa)

    0.4/0.7

    Steam temperature (℃)

    151/170

    Power (KW)

    12-24KW

    Pump motor power (KW)

    750

    water volume in boiler (L)

    42

    Size of appearance (mm)

    600x600x1280

    Gross weight (kg)

    91


    Linear Wrapper Shrink Sleeve Label Applicator Bottle Packing Plant 220V 380V 400V

    steam shrink tunnel

    Steam Shrink Tunnel:


    Item Models

    ZYP-2000M

    Blower powder supply

    Ø12, 0.25KW

    Powder supply

    380v/220v/50hz

    Running pressure

    Max 0.6Mpa

    Weight

    230kg

    Steam consumption

    24kg/h

    Conveyor speed

    0~35m/minute

    Outline size

    L2000*W400*H1500 mm

    Linear Wrapper Shrink Sleeve Label Applicator Bottle Packing Plant 220V 380V 400V

    Company Information

    Linear Wrapper Shrink Sleeve Label Applicator Bottle Packing Plant 220V 380V 400V


    Linear Wrapper Shrink Sleeve Label Applicator Bottle Packing Plant 220V 380V 400V

    FAQ

    Linear Wrapper Shrink Sleeve Label Applicator Bottle Packing Plant 220V 380V 400V

    1.Question: What's your main products?

    Reply: we produce ZYP-series sleeve labeling machine and HLML-series OPP labeling machine;


    2.Question: Are you factory?

    Reply: Yes, Our factory located in Shanghai(Add:158-F Huiping Road,Nanxiang High-tech Industries Park,Jiading,Shanghai);

    Our new factory in Taicang city is under construction now;


    3.Question: If I have special needs about design about the bottle label and machine,can you do that for me?

    Reply: we can design under your needs, based on the bottle/label sample, we also can supply plant engineering service for you;


    4.Question:How about your after-sale service?

    Reply: we have professional technical department to ensure the machine functioning well, both hardware and software technology;


    5.Question:Can we visiting your factory and production site?

    Reply: we really welcome your visiting, as the pictures up shows, in the past years, many customers from all over the world visited and cooperated with us.


    We wish can serve the best packing labeling machine and service for you.
